I have been drawing these since before I could spell them

Graphite on cartridge paper, most of it done at a desk with two pencils. Some sheets are studies where the proportion is the whole point, and some are one corner of a car drawn until the light on it reads right.

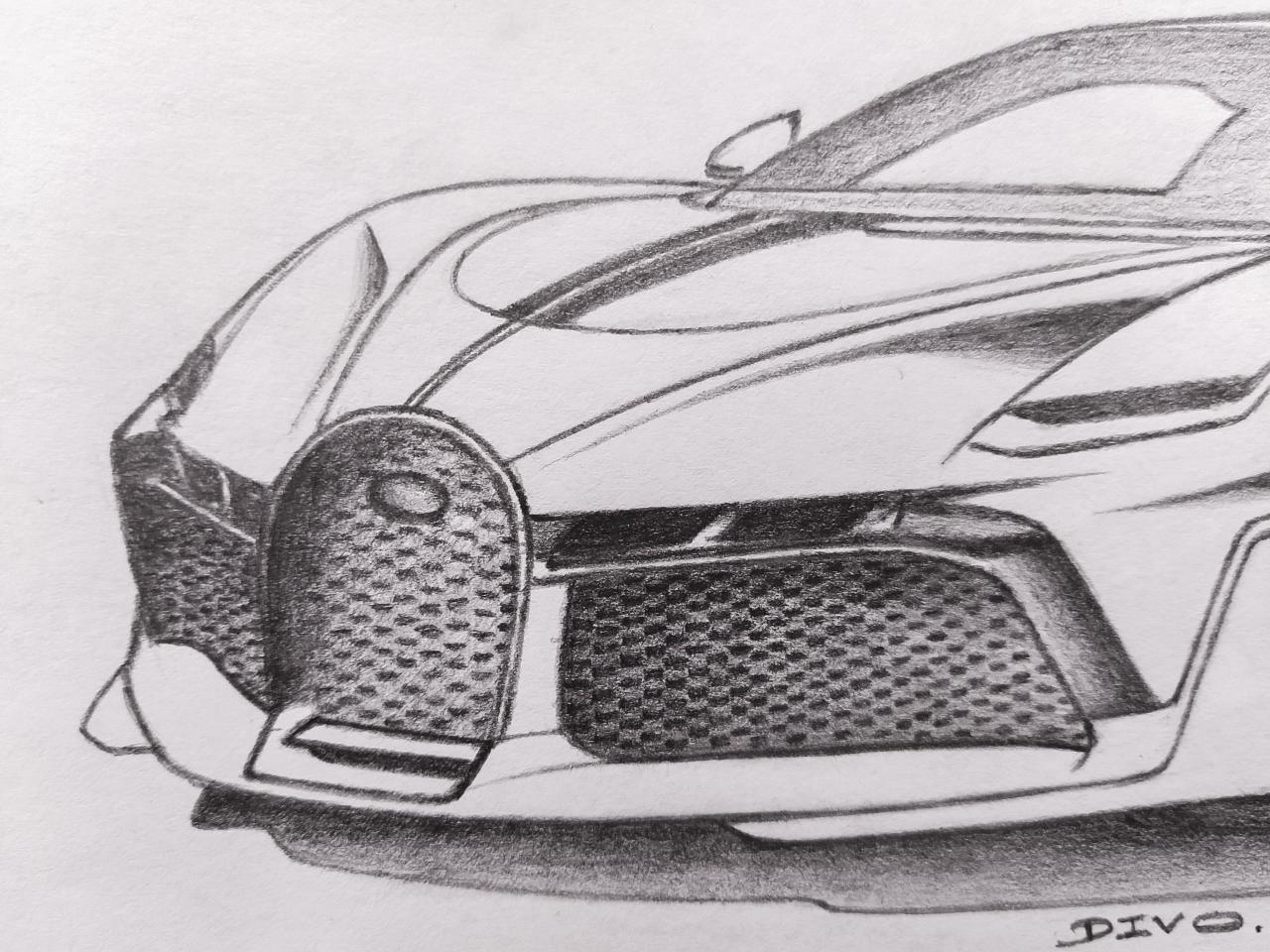

Pencil drawing of a Bugatti Divo seen close from the front three-quarter: the horseshoe grille and the lower intake filled in with hand-drawn mesh, a hard shadow under the splitter, and the roofline running off the top of the sheet. Signed DIVO in the lower right.
Divo, front end · drawn close, and the mesh worked in by hand rather than suggested

Form

The sheet is the drawing

Proportion studies, package drawings, and the odd interior section. Wheelbase and overhangs get set first, because the proportion is the decision and the surface is what follows from it.

A side-profile pencil study of a mid-engined coupe filling a landscape sheet: two wheels drawn as circles with a six-hole rim pattern, a long cabin set well back, a ground line under the car, and a signature at the rear. Two pencils lie across the bottom of the sheet.
Proportion study · wheels and ground line first, then the cabin gets pushed back until it sits right

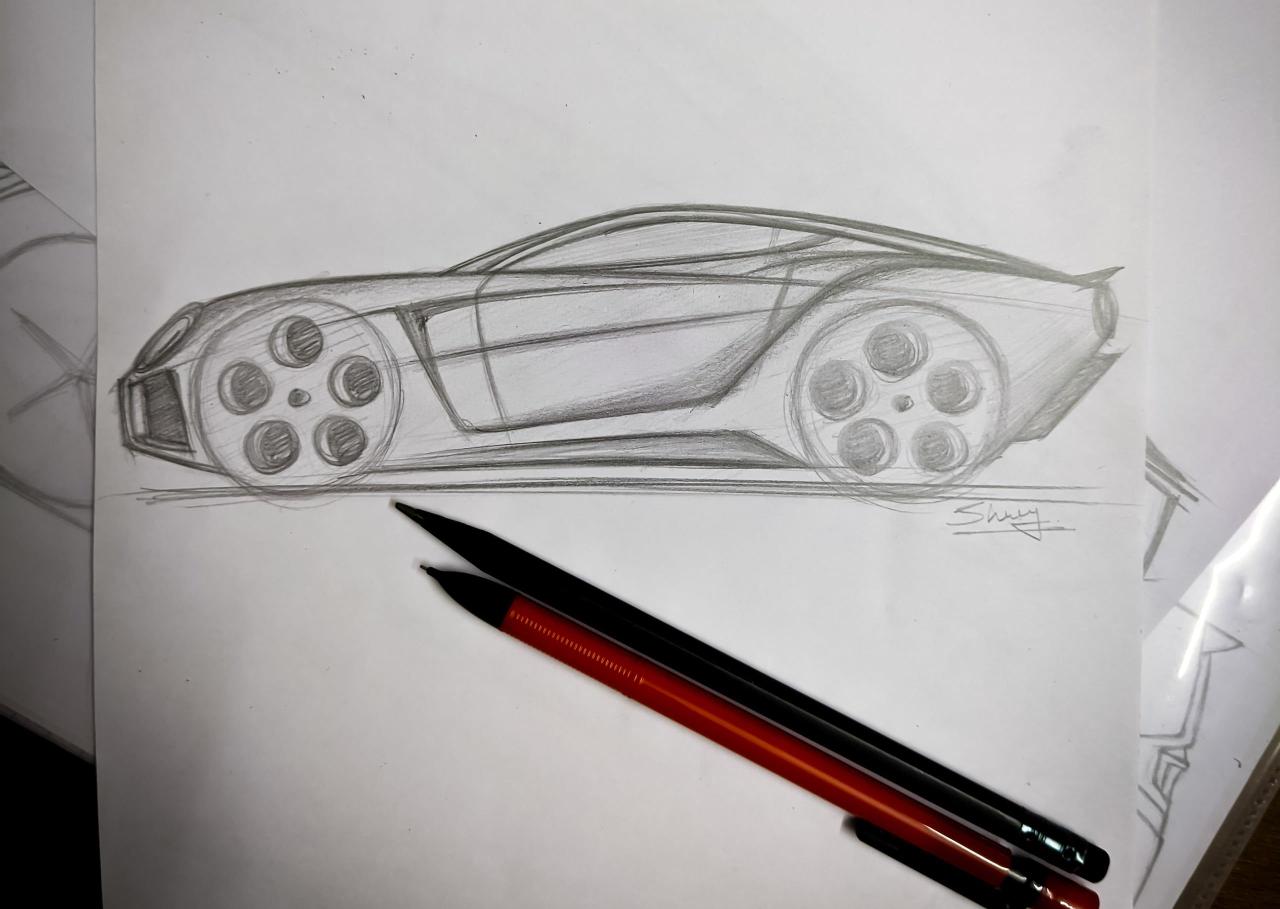

The same side-profile study photographed at an angle on a wooden desk, sitting on top of a second sheet whose own drawing shows through at the edges, with a black pencil and a red pencil resting on it.
On the desk · the sheet, the one under it, and the two pencils it was drawn with

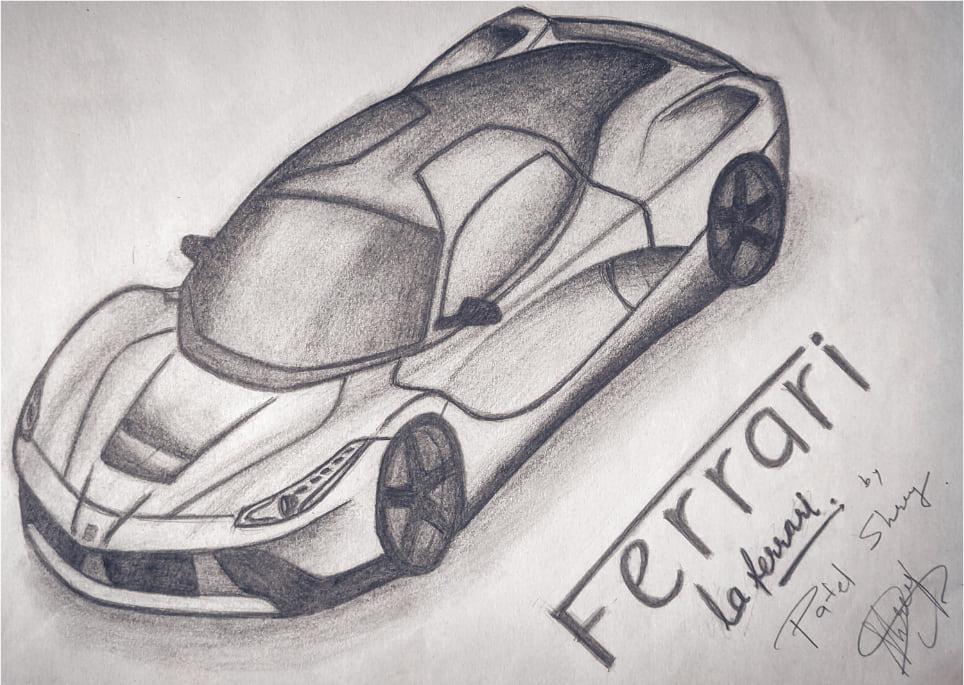

A finished pencil rendering of a Ferrari LaFerrari from a high front three-quarter angle, the roof and haunches shaded in soft graphite with the wheels blocked in dark. Titled Ferrari LaFerrari and signed Patel Shrey along the lower right.
LaFerrari · a finished one, shaded from above where the surface change is easiest to see

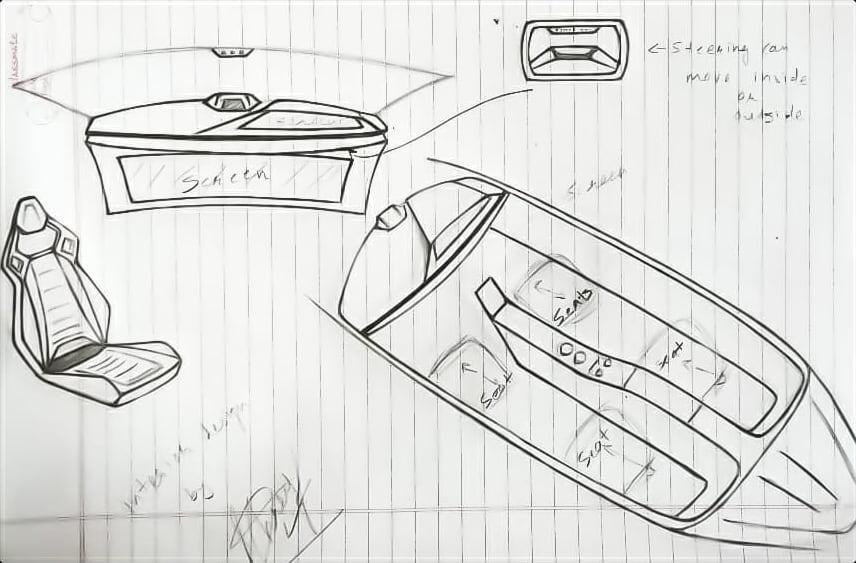

An ink and pencil interior study on lined paper: a dashboard drawn straight on with a wide display across it and the word Screen written inside, a steering wheel detail, a single seat drawn in three-quarter view, and a cabin plan looking down with three seats blocked out and labelled.
Interior section · seats blocked out in plan, and the screen written in where it goes

The package drawing is where the interior stops being a shape and starts being decisions: how many seats and where, how far the display runs across the dash, and a note to myself asking whether the wheel sits inboard or outboard of it.

Interface

The screen in the cabin

Automotive HMI, listed here and written up in full on the work index.
